RAM can appear slower than its label for two different reasons: the program is showing the memory clock instead of the DDR transfer rate, or the PC is actually using a lower configuration. Check the units and active settings before changing XMP or EXPO. A kit’s advertised rate is not a guarantee that every CPU, motherboard and module combination can run it.
First, decide whether the numbers really disagree
Open Task Manager → Performance → Memory and note the speed label, value and total capacity. If you use CPU-Z from CPUID, its Memory tab reports the active DRAM frequency. The SPD tab describes module information and stored profiles; seeing a faster profile there does not mean it is currently enabled.

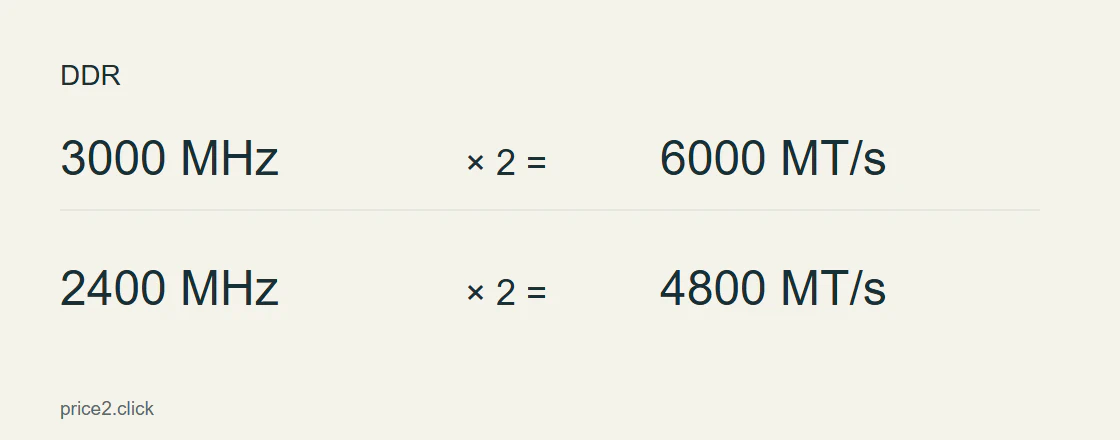

DDR transfers data twice per clock cycle. Kingston explains the distinction, which produces these interpretation examples:
1600 MHz DRAM clock ≈ 3200 MT/s DDR transfer rate
2400 MHz DRAM clock ≈ 4800 MT/s DDR transfer rate
3000 MHz DRAM clock ≈ 6000 MT/s DDR transfer rate
These are unit examples, not tested performance figures. A DDR5-6000 kit showing about 3000 MHz in an active DRAM-clock readout may be working as configured. A 4800 MT/s active rate for that kit is genuinely lower. Do not multiply a number already labeled MT/s by two. Small rounding differences are not evidence that half your RAM speed is missing.
Why the PC may use a lower rate
Memory often starts with a standard configuration rather than the kit’s optional performance profile. Intel XMP and AMD EXPO store overclocking settings for compatible memory/platforms. They can change timings and voltage as well as rate. Review the manufacturer’s overclocking and warranty conditions before using them.
Other explanations include a CPU/controller limit, an unsupported board or OEM firmware, separately purchased kits, additional modules, or a profile that failed and fell back to defaults. A lower stable configuration is preferable to a faster number that corrupts work or crashes games.
Do not assume that four modules always run at one particular reduced rate, or that every AMD/Intel system should use the same target speed.
Check compatibility before enabling a profile
- Identify the complete system. Record CPU, motherboard or exact prebuilt/laptop model, BIOS version, kit part number, capacity, module count and occupied slots. Our Windows specifications guide helps with identification.
- Read the exact board/system manual. Confirm profile support and recommended slots for your module count. “Usually A2/B2” is not a substitute for the manual of your board.
- Check the memory support list, or QVL. Match the complete kit number and tested configuration, not just the brand. Absence from a list does not prove incompatibility, but it removes that particular validation.
- Account for mixed kits. Kingston warns that combining separate kits, even with the same part number, can produce instability or compatibility problems. A matched kit and supported configuration matter more than matching the box color.
On a laptop or locked prebuilt, a missing profile setting may be intentional. Do not install an unofficial BIOS or manually copy another PC’s voltage values to create it.
Decode a memory reading before changing BIOS
Choose the unit actually shown by the active readout. The kit label or an SPD profile describes a possible configuration, not proof that it is active.
- Read the active value
Task Manager Memory or CPU-Z Memory, with the unit visible.
- Separate clock from transfers
DDR transfers twice per clock. 3000 MHz clock corresponds to 6000 MT/s.
- Verify the configuration
Exact CPU, board, BIOS, kit and occupied slots decide profile support.
A kit is sold as DDR5-6000. CPU-Z Memory shows DRAM Frequency 3000 MHz: that is consistent with 6000 MT/s, so a missing 6000 MHz number is not a fault. If Memory shows 2400 MHz while SPD lists a 6000 MT/s profile, the active rate is 4800 MT/s; the profile listing is only a capability. Check support before changing anything. After a supported change, verify active rate, capacity and stability separately.
Runs only in your browser. Nothing is uploaded or saved. Use the written method above to collect the right readings.
CAS component = CL × 2000 ÷ MT/s. DDR4-3200 CL16 and DDR5-6000 CL30 both give 10 ns. This is one timing component, not total system memory latency, a stability test or an FPS prediction.
If supported, make one reversible change
Save work and a backup of important files. Note the original memory setting and obtain the board’s recovery instructions before entering firmware. If device encryption is in use, have its recovery information available. Avoid doing this just before work you cannot interrupt.
Restart into BIOS/UEFI using the method for your exact machine. Find the memory-profile setting and select the supported profile documented for that kit and board. Names can include XMP, EXPO or DOCP; menu position and profile meanings vary. ASUS’s illustrated example demonstrates that variation, rather than one universal screen. Corsair also provides board examples.
Review the save-confirmation changes. The intended change is the memory profile and its associated parameters. Stop if you do not understand additional changes. Do not simultaneously alter CPU tuning, storage mode, TPM, Secure Boot or boot order. This guide does not require manual voltage adjustment or a BIOS update.
Allow the board’s documented memory-training process to finish; some systems take longer after a change. Do not repeatedly interrupt power simply because the first boot is slower than usual. If the board cannot boot, follow its exact recovery procedure, not a generic instruction to short pins.
Verify both speed and stability
Back in Windows, reopen the same active-rate readout. Check that capacity and the expected rate are present. A faster SPD profile listing alone is not confirmation.
Then use the memory-test method recommended by the system or memory manufacturer and repeat your normal workload. Record tool, settings, duration and errors. A successful boot or one completed test is useful evidence, not proof of perfect stability. Watch for new crashes, application errors and unexpected restarts.
If trouble begins with the profile, return the memory setting to its previous/default state and retest. Errors only with the profile suggest a configuration/stability problem; errors at stock settings need broader diagnosis. They do not conclusively identify one faulty module without further checks.
CPU / board or PC model / BIOS version:
Kit part number / capacity / module count / slots:
Manual and QVL checked:
Before: readout name / number / unit / profile:
Single profile change / save summary:
After: active rate / capacity:
Memory test / duration / errors:
Normal workload / crashes or other symptoms:
Rollback setting / result after rollback:
When to stop chasing the advertised number
Keep the stable configuration if your firmware lacks support or the complete system cannot validate the profile. Ask the board, PC or memory manufacturer about the exact combination before replacing parts. Repeated voltage increases are not a sensible next step for a novice troubleshooting guide.
If gaming performance is your concern, a correct rate still does not promise a fixed FPS gain. Our CPU/GPU limit test helps distinguish memory configuration from other performance limits.
Common questions
Does a Windows setting enable XMP or EXPO?
Task Manager reads the configuration; it does not activate a BIOS memory profile. Use the system’s supported firmware route.
Is a lower rate proof that the kit is faulty?
No. Standard settings, units, firmware and the CPU/controller configuration can explain it. Confirm the active configuration and test before blaming the modules.
Should I choose a “Tweaked” profile for the biggest number?
Not as a generic starting point. Such options can modify additional timings. Follow the exact platform documentation and establish stability with the supported basic configuration first.
