On paper, DDR5 specs look contradictory.
A typical DDR5 kit runs at 6000 MT/s, but pairs that frequency with what looks like a loose timing: CL30 or CL36. Older DDR4 runs at a much lower 3200 MT/s, yet advertises CL16. That leads a lot of first-time builders to assume DDR4 responds faster, or that DDR5 traded latency away just to get bigger marketing numbers.
It didn’t. CAS Latency is measured in clock cycles, not nanoseconds. Once you run the actual math, DDR5-6000 CL30 delivers the exact same 10.0-nanosecond first-word response time as DDR4-3200 CL16, while pushing nearly double the memory bandwidth.
The real decision in 2026 isn’t about theoretical latency. It comes down to motherboard platform locks (AMD AM5 won’t boot with DDR4, Intel LGA 1700 forces a choice between a DDR4 or DDR5 board upfront), severe signal degradation when running four sticks instead of two, and whether 1% low frame consistency in modern games justifies the cost of a platform overhaul.
Here is how memory timing actually works, what independent lab testing shows in games, and how to avoid the most common buying traps.
The Short Answer
Build fresh on DDR5 in 2026; keep DDR4 only to stretch existing systems
DDR5 pricing has fully matured. At the standard sweet spot of DDR5-6000 CL30, true first-word response time is 10.0 nanoseconds — matching DDR4-3200 CL16 — while delivering almost double the memory bandwidth and 20% higher 1% low frame consistency in asset-heavy open-world games. Building a brand-new PC on DDR4 makes no sense unless you are reusing an existing kit to save money.
Live Hardware Comparison: Mainstream DDR5 vs Proven DDR4
To see how memory pricing, latency ratings, and specs compare across current retail stock, here is a live side-by-side view of popular 32GB dual-channel kits from our component database:
To track live pricing across thousands of memory modules, check live RAM rankings and deals in The Comparator.
Recommended Memory Kits for Current Builds
Corsair Vengeance DDR5 32GB (2x16GB) 6000MHz CL30
The gold standard sweet spot for modern gaming PCs. At 6000 MT/s and CL30, it delivers 10.0 ns true response time and keeps the CPU memory controller at peak 1:1 stability.
- 32GB (2x16GB)
- DDR5-6000 MT/s
- Timings: CL30-36-36-76
- AMD EXPO & Intel XMP 3.0
G.Skill Flare X5 32GB (2x16GB) DDR5-6000 CL30
Low-profile 33mm heatsink design without RGB interference. Factory-tuned for AMD EXPO, fitting cleanly under large dual-tower CPU air coolers like the Peerless Assassin or NH-D15.
- 32GB (2x16GB)
- DDR5-6000 MT/s
- Timings: CL30-38-38-96
- Compact 33mm Height
Corsair Vengeance LPX 32GB (2x16GB) DDR4-3200 CL16
The battle-tested benchmark for keeping DDR4 rigs competitive. 32GB eliminates memory stutter and excessive SSD paging at a minimal entry cost.
- 32GB (2x16GB)
- DDR4-3200 MT/s
- Timings: CL16-20-20-38
- Intel XMP 2.0

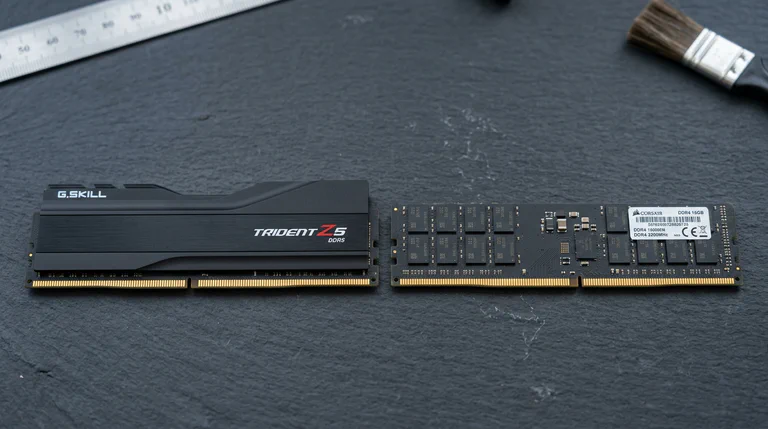

Physical and Electrical Differences
Both generations use standard 288-pin desktop DIMMs measuring roughly 133.35 mm in length. But they are mechanically and electrically incompatible.
1. The Key Notch: Incompatible by Design
Along the bottom edge of gold contacts, there is a small rectangular cutout called the key notch:
- On DDR4, the notch sits 5.5 mm away from the center.
- On DDR5, the notch is shifted closer to the center, and the pin pitch is subtly tighter.
You cannot physically plug a DDR5 module into a DDR4 motherboard slot, nor can you plug DDR4 into a DDR5 board. Forcing a module into the wrong slot will crack the PCB connector or snap the motherboard retention latch.
2. Voltage Regulation Moved to the Module (PMIC)
In DDR4, power conversion happened entirely on the motherboard: 12V from the power supply was stepped down to standard 1.2V by motherboard VRMs.
DDR5 relocates voltage regulation directly onto the memory stick through an onboard PMIC (Power Management Integrated Circuit). The motherboard feeds 5V directly to the stick, and the onboard PMIC steps it down to the baseline 1.1V (or higher under overclocked profiles).
This delivers cleaner, lower-noise power to the DRAM chips, but it introduces a practical tradeoff: the PMIC chip generates heat. Bare green PCBs were common on budget DDR4, but high-speed DDR5 kits (running at 1.35V to 1.45V under AMD EXPO or Intel XMP) need proper aluminum heatspreaders so the PMIC doesn’t overheat.
3. On-Die ECC is Not Server ECC
Packaging frequently advertises that DDR5 includes On-Die ECC (ODECC). Don’t confuse this with enterprise error correction used in mission-critical servers.
As memory makers shrunk DRAM down to smaller lithography nodes, individual memory cells became more prone to electrical leakage and bit flips. On-die ECC was introduced so manufacturers could maintain viable silicon yields by catching internal cell errors within the silicon die.
It never checks the bus connecting the module to the CPU memory controller. If data corrupts in transit across the motherboard traces, ODECC cannot detect it. True workstation ECC still requires extra physical memory chips and dedicated platform support.
Memory Bus Architecture: 1x 64-Bit vs 2x 32-Bit Sub-Channels
The most significant architectural shift in DDR5 isn’t clock frequency — it’s how the memory bus handles requests.
The DDR4 Bus: A Single 64-Bit Highway
On a DDR4 module, all memory chips share a single 64-bit wide data bus. When a processor core requests data from memory, that entire 64-bit bus is locked until the read or write operation finishes.
With modern desktop CPUs packing anywhere from 6 to 24 cores competing for memory access at the same time, cores frequently have to wait in line for the bus to clear.
The DDR5 Bus: Dual Independent 32-Bit Channels
DDR5 splits each physical DIMM into two completely independent 32-bit sub-channels (Channel A and Channel B).
- A single stick of DDR5 behaves like two smaller memory modules running in parallel.
- When you install two sticks of DDR5, your CPU communicates across four independent 32-bit sub-channels (quad-subchannel concurrency).
- Two different CPU cores can access different parts of memory simultaneously without blocking each other.
Burst Length Doubled (BL8 vs BL16)
To match this layout, JEDEC doubled the default Burst Length:
- DDR4 (BL8): Fetches 8 data transfers $\times$ 64 bits = 64 bytes per request.
- DDR5 (BL16): Fetches 16 data transfers $\times$ 32 bits = 64 bytes per sub-channel request.
Because CPU cache lines in modern Intel and AMD chips are exactly 64 bytes wide, one burst on one 32-bit DDR5 sub-channel satisfies an entire cache line cleanly. This cuts bus overhead and improves effective memory efficiency by roughly 35% at the exact same clock speed.
Why CL Numbers Don’t Mean What People Think
The most persistent myth surrounding DDR5 is that higher CAS Latency means slower real-world response times.
What CAS Latency Actually Measures
CAS Latency is not measured in nanoseconds. It is measured in clock cycles.
CL16 means the memory stick waits 16 clock cycles between receiving a read command and returning the first bit of data.
Because a clock cycle at 6000 MT/s passes twice as fast as a clock cycle at 3000 MT/s, comparing raw CL numbers across different generations is meaningless without doing the math.
The True Latency Formula
To calculate how fast memory responds in the real world, you calculate the True First-Word Latency in nanoseconds:
Quick calculation: DDR5-6000 CL30 → (30 × 2,000) ÷ 6,000 = 10.00 ns (exactly matches DDR4-3200 CL16).
Here is how the numbers shake out across standard retail kits:
| Memory Kit | Data Rate | CAS Latency (CL) | True First-Word Latency | Dual-Channel Bandwidth |
|---|---|---|---|---|
| DDR4 Value Baseline | 3200 MT/s | CL16 | 10.00 ns | 51.2 GB/s |
| DDR4 Sweet Spot | 3600 MT/s | CL16 | 8.89 ns | 57.6 GB/s |
| DDR4 Common Value | 3600 MT/s | CL18 | 10.00 ns | 57.6 GB/s |
| Early DDR5 (2021 JEDEC) | 4800 MT/s | CL40 | 16.67 ns | 76.8 GB/s |
| DDR5 Budget Value | 5600 MT/s | CL36 | 12.86 ns | 89.6 GB/s |
| DDR5 Golden Sweet Spot (2026) | 6000 MT/s | CL30 | 10.00 ns | 96.0 GB/s |
| DDR5 High Performance | 6400 MT/s | CL32 | 10.00 ns | 102.4 GB/s |
| DDR5 Enthusiast Tier | 7200 MT/s | CL34 | 9.44 ns | 115.2 GB/s |
At DDR5-6000 CL30, initial response time is 10.0 nanoseconds — exactly matching standard DDR4-3200 CL16. But while the initial response time is identical, DDR5 pushes 87% more bandwidth (96 GB/s vs 51.2 GB/s) across four independent sub-channels.
Early DDR5 kits in 2021 launched at 4800 MT/s CL40, resulting in a sluggish 16.67 ns response time. That rocky debut gave DDR5 an undeserved reputation for poor latency that modern kits have completely overcome.
Interactive: RAM Speed, True Latency & Platform Matcher
Use this tool to calculate true latency in nanoseconds, check bandwidth, and verify whether a specific kit matches your motherboard and processor:
RAM Latency & Platform Compatibility Calculator
Select memory parameters and your target platform to verify true response time and compatibility.
Gaming Benchmarks: Why 1% Lows Tell the Real Story
Average FPS charts rarely tell the full story with memory performance.
In modern game engines, the average frame rate is almost always determined by your graphics card. But minimum frame rates (the 1% and 0.1% lows — what you feel as micro-stuttering, hitching, and camera judder) depend heavily on memory bandwidth and sub-channel queue depth.
1. 1080p CPU-Bound Testing
Paired with a fast graphics card (RTX 4080 or RTX 4090) at 1080p, games are held back by the processor feeding draw calls to the GPU:
- Average FPS: DDR5-6000 CL30 delivers an 8% to 16% uplift over DDR4-3200 CL16 across typical gaming suites.
- 1% Low Frame Rates: The uplift jumps significantly: 18% to 28% higher 1% lows.
- In titles with heavy background world streaming (Baldur’s Gate 3 Act 3, Cyberpunk 2077, Spider-Man Remastered), the game runs noticeably smoother because frametimes stay flat during fast camera turns and heavy asset loading.
2. 1440p and 4K GPU-Bound Testing
At 1440p or 4K with high settings on a midrange GPU (such as an RTX 4070 or Radeon RX 7800 XT), the graphics card operates near 99% load:
- Average FPS: The performance gap between DDR4 and DDR5 narrows to 2% to 5%.
- Multitasking Margin: However, if you game with Discord voice chat, an open browser with 20 tabs, and background recording software active, DDR4’s single 64-bit channel suffers from bus congestion. DDR5’s four independent sub-channels absorb that background traffic without dropping frames.
Motherboard Rules: Sockets and the 4-Stick Trap
Before picking a kit, keep these motherboard platform rules in mind:
1. AMD AM5 is 100% DDR5-Only
AMD completely dropped DDR4 support with the AM5 socket (Ryzen 7000 and Ryzen 9000 series, including the 9800X3D). There are no DDR4 AM5 motherboards.
The universal sweet spot for AMD AM5:
- Capacity: 32GB (2x16GB) or 64GB (2x32GB)
- Speed: 6000 MT/s
- Latency: CL30
- Profile: AMD EXPO (Extended Profiles for Overclocking)
Pushing past 6000 MT/s on AMD AM5 forces the memory controller to drop from a 1:1 clock ratio (UCLK=MEMCLK) down to a 1:2 ratio. That penalty adds roughly 10 to 12 nanoseconds of system latency, canceling out the extra bandwidth of 6400 MT/s kits in games.
2. Intel LGA 1700 Supports Both (Choose Carefully)
Intel 12th, 13th, and 14th Gen chips feature a hybrid memory controller supporting both DDR4 and DDR5.
- However, each motherboard is wired for one or the other.
- If you buy an ASUS TUF B760-PLUS WIFI D4, it only takes DDR4.
- If you buy the standard B760-PLUS WIFI, it only takes DDR5.
- You cannot buy DDR4 today with plans to swap in DDR5 later on the same board.
3. Intel LGA 1851 (Core Ultra 200) is DDR5-Only
Intel’s Arrow Lake platform has retired DDR4 completely, standardizing on DDR5 across all Z890 and B860 motherboards.
4. The 4-Stick Trap: Why You Shouldn’t Run 4 DDR5 Sticks
On older DDR3 and DDR4 rigs, filling all four RAM slots looked great and rarely caused stability issues.
On DDR5, running four sticks is a severe stability trap.
Modern consumer motherboards use a Daisy-Chain memory trace layout optimized specifically for two sticks. Populating all four DIMM slots with DDR5 places heavy electrical strain on the CPU memory controller. In testing across ASUS, MSI, and Gigabyte boards, four DDR5 sticks almost never boot stably at 6000 MT/s with EXPO/XMP enabled; the motherboard will downclock the memory to 4400 or 4800 MT/s to prevent crashes. If you need 64GB or 96GB of RAM, always buy a 2-stick kit (2x32GB or 2x48GB non-binary DIMMs) rather than four sticks.
Frequently Asked Questions (FAQ)
Can I put DDR5 RAM into a DDR4 motherboard?
No. DDR4 and DDR5 have different physical key notch placements along their 288-pin connectors. A DDR5 stick physically will not seat inside a DDR4 socket. Forcing it into the slot will break the connector or crack the motherboard.
Does DDR5 have worse latency than DDR4 because of higher CL numbers?
No. CAS Latency (CL) is measured in clock cycles, not nanoseconds. Because DDR5 runs at double the clock frequency of DDR4, each cycle passes in half the time. DDR5-6000 CL30 has an actual first-word latency of 10.0 nanoseconds — exactly the same as DDR4-3200 CL16 — while delivering 87% higher bandwidth and four concurrent sub-channels.
Is 16GB RAM enough for gaming in 2026, or do I need 32GB?
32GB is the modern standard for gaming. Recent titles like Hogwarts Legacy, Cyberpunk 2077: Phantom Liberty, The Last of Us Part I, and Cities: Skylines II frequently push system memory usage past 18GB to 22GB when background apps (Discord, web browsers, anti-cheat) are active. Running 16GB causes Windows to page memory to your SSD, resulting in stuttering.
What is the difference between XMP and EXPO?
XMP (Extreme Memory Profile) was created by Intel, while EXPO (Extended Profiles for Overclocking) was created by AMD. Both are one-click BIOS presets that set the advertised speed, voltage, and primary timings. While many Intel XMP kits will work on AMD motherboards, buying an AMD EXPO-certified kit guarantees proper sub-timings tuned specifically for Ryzen memory controllers.
Is it worth upgrading from DDR4 to DDR5 on the same CPU?
Only on Intel LGA 1700 (which supports both on different boards). Moving from DDR4-3200 to DDR5-6000 on a Core i7-13700K yields an 8% to 15% boost in CPU-heavy games. However, because you have to purchase both a new motherboard and a new RAM kit, it is rarely cost-effective compared to putting that $200+ budget toward a faster graphics card.
What is non-binary RAM (24GB and 48GB modules)?
Non-binary RAM uses newer 24Gb DRAM memory density instead of traditional 16Gb density. This allows manufacturers to build 24GB single sticks and 48GB kits (or 96GB 2-stick kits). Non-binary kits are fantastic for creators who need more than 32GB but do not want to sacrifice memory speed by trying to run 4 sticks.
Mini-Glossary

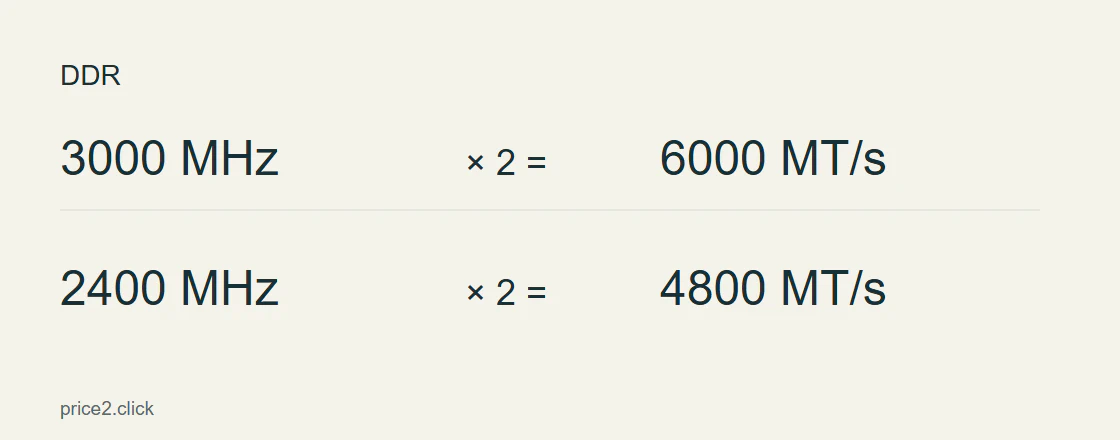

- MT/s (MegaTransfers per Second): The accurate measurement of DDR (Double Data Rate) effective speed, often colloquially referred to as MHz.
- CAS Latency (CL): The delay in clock cycles between when a memory controller sends a column address command and when the data becomes available.
- True Latency (ns): The actual real-world response time calculated in nanoseconds: $(CL \times 2000) / \text{MT/s}$.
- Sub-Channels: DDR5’s architecture splitting each 64-bit DIMM into two independent 32-bit data channels to double concurrent memory access.
- PMIC (Power Management IC): An onboard microchip on DDR5 modules that converts motherboard input voltage down to DRAM operating voltage.
- On-Die ECC (ODECC): Internal silicon-level error correction built into DDR5 chips to protect against cell leakage, distinct from system-wide sideband ECC.
- AMD EXPO: AMD’s open standard for memory overclocking profiles with pre-tuned timings for Zen 4 and Zen 5 processors.
- Intel XMP 3.0: Intel’s standard memory overclocking profile system for DDR5 memory kits.
- FCLK / UCLK: The internal clock speeds of the CPU Infinity Fabric (FCLK) and Memory Controller (UCLK).
